The Professional’s Guide: How to Make and Customize High-Performance Acoustic Wall Panels

The Science of Silence: Absorption vs. Isolation

微信图片 20231109113354

Before diving into the manufacturing process, it is vital to clarify the terminology that often confuses clients. To create an effective acoustic environment, one must distinguish between soundproofing and sound absorption.

Sound Absorption (Acoustic Panels)

Acoustic wall panels are designed to reduce the “liveliness” of a room. When sound waves hit hard surfaces like glass, concrete, or drywall, they bounce back, creating echoes and reverberation. Acoustic panels are porous; they trap sound energy and convert it into a small amount of heat (kinetic energy), thereby reducing background noise and improving speech intelligibility.

Sound Isolation (Sound Proof Panels)

Clients often request sound proof panels when they actually need absorption. True soundproofing involves blocking sound from entering or leaving a room. This requires mass and decoupling (like heavy vinyl barriers or double-stud walls). However, high-density polyester acoustic panels can contribute to sound transmission loss (STC) when used as part of a multi-layered wall assembly, acting as a hybrid solution.

Material Matters: Why Polyester is the Industry Standard

主图 3 393 副本

Historically, acoustic treatments were made from fiberglass wrapped in fabric or polyurethane foam. Today, the B2B market has shifted decisively toward polyester acoustic panels (PET felt).

The Advantages of PET over Fiberglass

Safety and Health: Unlike fiberglass, which can irritate the skin and lungs, polyester is non-toxic, non-allergenic, and does not require protective gear during handling.

Sustainability: Most professional PET panels are made from 60% to 100% recycled plastic bottles, helping projects qualify for LEED sustainability credits.

Durability: Polyester is impact-resistant. It doesn’t degrade, crumble, or lose its shape over time, making it ideal for high-traffic commercial areas.

Design Versatility: PET felt is rigid enough to be cut into geometric shapes, CNC-routed, or printed on, eliminating the need for wooden frames.

Industrial Manufacturing: How Acoustic Wall Panels Are Made

For wholesalers and distributors, understanding the industrial production process is key to assessing quality. The manufacturing of high-quality acoustic wall panels involves several precise stages.

1. Fiber Preparation and Blending

The process begins with raw polyester fibers. These fibers are a mix of virgin fibers (for strength and color consistency) and low-melt fibers (which act as the binding agent). The ratio is critical; too much binder reduces porosity (lowering acoustic performance), while too little makes the board weak.

2. Carding and Lapping

The fibers are combed (carded) to align them in the same direction, forming a thin web. Multiple layers of this web are stacked (lapped) to achieve the desired weight and density. For a standard 9mm panel, the target density is usually around 1,900g/m² to 2,300g/m².

3. Needle Punching

This is the mechanical bonding phase. Thousands of barbed needles repeatedly punch through the fiber web. This entangles the fibers, compressing the mat and creating a stable, felt-like structure without the need for chemical glues.

4. Thermal Bonding and Calendering

The needle-punched mat is passed through a high-heat oven. The low-melt fibers soften and bond the matrix together. Finally, the material goes through calender rollers—heated heavy rollers that compress the board to its final thickness (e.g., 9mm, 12mm, or 24mm) and smooth the surface finish.

Custom Fabrication: How to Make Bespoke Acoustic Panels (DIY & Pro Guide)

While the raw boards are manufactured industrially, the true value for contractors and designers lies in how to make acoustic wall panels into finished architectural features. Whether you are a professional installer or a DIY enthusiast outfitting a home studio, here is the fabrication process for customizing raw polyester boards.

Step 1: Designing and Measuring

Accurate planning is essential. Determine the surface area coverage. For general noise reduction in an office, covering 15-20% of the wall surface with acoustic wall panels is usually sufficient.

Pro Tip: Don’t just cover one wall. Distributing panels across adjacent walls or the ceiling creates a more balanced acoustic field.

Step 2: Cutting Polyester Acoustic Panels

PET felt is dense and tough. Standard utility knives often struggle to produce a clean edge.

For Straight Cuts: Use a track saw with a fine-toothed blade or a heavy-duty utility knife with a fresh heavy-duty blade. Multiple shallow passes are better than one deep force cut.

For Complex Shapes: CNC oscillating knife cutters are the industry standard for creating intricate geometric patterns, beveled edges (chamfering), or perforations.

Chamfering: To give the panel a professional, tiled look, use a 45-degree bevel cutter on the edges. This hides minor wall imperfections and creates a shadow line that enhances the visual depth.

Step 3: Creating Slatted Wood Acoustic Panels

A trending design involves combining PET felt with wood slats.

The Base: Use a 9mm black or grey polyester acoustic panel as the backing.

The Slats: Cut MDF or solid wood slats (e.g., 27mm wide).

Assembly: Use a construction-grade adhesive or black staples (fired from the back of the felt into the wood) to secure the slats to the PET felt. Ensure consistent spacing (e.g., 13mm gaps) to allow sound to pass through the gaps and be absorbed by the felt behind.

Step 4: Layering for Enhanced Soundproofing

If the goal is to create sound proof panels (or maximize absorption at lower frequencies), you must increase the air gap.

The Air Gap Method: Instead of gluing the panel directly to the wall, mount wood furring strips (battens) to the wall first.

Install: Attach the acoustic panel to the furring strips. The cavity of air behind the panel acts as a “bass trap,” significantly improving the panel’s ability to absorb low-frequency energy (like deep male voices or machinery hum).

Installation Techniques for Commercial Projects

How you install acoustic wall panels affects both longevity and aesthetics. Here are the three professional methods.

1. Construction Adhesive (Permanent)

For permanent installations in high-traffic areas (schools, lobbies), use a high-grab construction adhesive (like Liquid Nails or specialized acoustic glue). Apply the glue in swirls on the back of the panel, press against the wall, and hold until tack is achieved.

Warning: This method will damage the drywall if the panel is removed.

2. Z-Clips or Impaling Clips (Removable)

For offices where panels might need to be moved or replaced, mechanical fixing is best.

Impaling Clips: Metal plates with spikes are screwed to the wall. The polyester panel is simply pressed onto the spikes, effectively hanging it.

Z-Clips: One clip goes on the panel, one on the wall. They interlock for a secure, hidden fit.

3. Magnetic Mounting (Modular)

For ultimate flexibility, install heavy-duty magnets on the wall and metal washers on the panel back. This allows for easy swapping of colors or designs without tools.

Evaluating Quality: What to Look For

Not all polyester acoustic panels are created equal. When sourcing for B2B projects, check these specifications:

NRC Rating (Noise Reduction Coefficient)

This measures how much sound the panel absorbs. An NRC of 0 means perfect reflection; 1 means perfect absorption.

Standard: Look for an NRC of 0.85 or higher for 24mm panels, or 0.45-0.60 for 9mm panels.

Density

Density determines durability and absorption profile.

9mm Panels: Should be at least 1,900 g/m² (grams per square meter).

12mm Panels: Should be at least 2,300 g/m².

Lower density panels will feel soft/spongy and will not hold their shape or cut cleanly.

Fire Rating

For commercial building codes (hotels, offices), panels must meet fire safety standards. Ensure the panels are rated ASTM E84 Class A (USA) or EN 13501 Class B (Europe).

Aesthetic Trends in Acoustic Treatment

The modern market demands that acoustics blend with interior design.

Grooved Patterns: V-grooves cut into the surface of polyester acoustic panels create visual texture and can mimic tiles or linear designs.

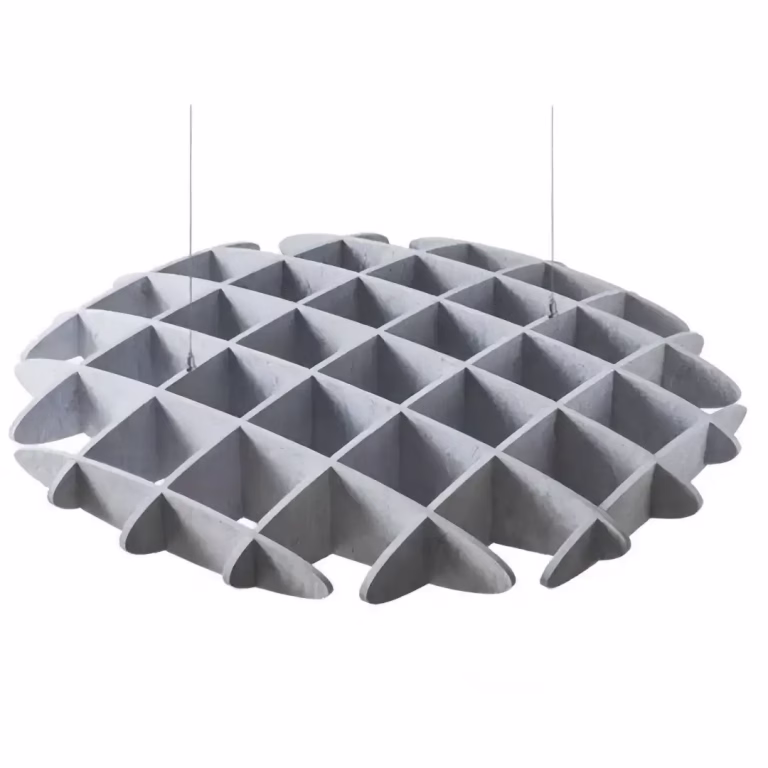

3D Formed Panels: Using heat molding, PET felt can be pressed into 3D shapes (waves, pyramids), increasing surface area and absorption while serving as wall art.

Printed Panels: UV printing technology allows high-resolution photos, logos, or wood grain textures to be printed directly onto the acoustic felt without clogging the pores.

Conclusion

Learning how to make acoustic wall panels—whether from a manufacturing standpoint or a custom fabrication perspective—reveals the versatility of this material. For B2B buyers, switching from traditional foam to polyester acoustic panels offers a superior blend of performance, sustainability, and design flexibility.

While true sound proof panels require complex construction, high-density acoustic treatments are the most cost-effective way to solve noise pollution in modern architecture. By selecting the right density, utilizing precision cutting techniques, and employing professional installation methods, you can transform any chaotic auditory environment into a space of clarity and calm.
